RUD hoogwaardige topschalmen Grade 80 met verwisselingsvrije aansluitingen.

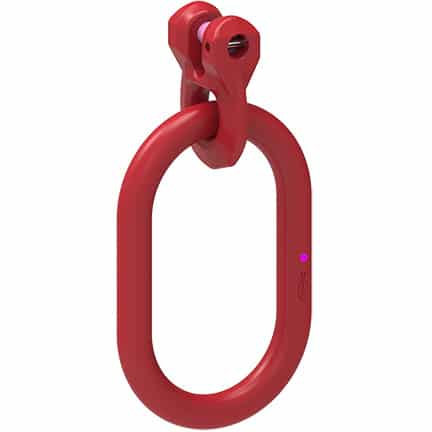

RUD Topschalm voor éénsprong
|
Type |
SWL (t) |
A (mm) |
B (mm) |
C (mm) |
T (mm) |
Gewicht (kg) |
|
AK1-6 |
1.12 |
13 |
60 |
110 |
138 |
0.6 |
|
AK1-8 |
2.00 |
16 |
60 |
110 |
147 |
0.9 |
|
AK1-10 |
3.15 |
18 |
75 |
135 |
181 |
1.4 |
|
AK1-13 |
5.30 |
22 |
90 |
160 |
218 |
2.4 |
|
AK1-16 |
8.00 |
26 |
100 |
180 |
250 |
3.7 |
|
AK1-18 |
10.00 |
32 |
110 |
200 |
280 |
6.1 |
|
AK1-22 |
15.00 |
36 |
140 |
260 |
354 |
10.1 |
RUD Topschalm voor tweesprong
|
Type |
SWL (t) |
A (mm) |
B (mm) |
C (mm) |
T (mm) |
Gewicht (kg) |
|
AK2-6 |
1.60/1.12 |
13 |
60 |
110 |
138 |
0.6 |
|
AK2-8 |
2.80/2.00 |
16 |
60 |
110 |
147 |
0.9 |
|
AK2-10 |
4.25/3.15 |
18 |
75 |
135 |
181 |
1.4 |
|
AK2-13 |
7.50/5.30 |
22 |
90 |
160 |
218 |
2.4 |
|
AK2-16 |
11.20/8.00 |
26 |
100 |
180 |
250 |
3.7 |
|
AK2-18 |
14.00/10.00 |
32 |
110 |
200 |
280 |
6.1 |
|
AK2-22 |
21.00/15.00 |
36 |
140 |
260 |
354 |
10.1 |
RUD Topschalm voor viersprong
|
Type |
SWL (t) |
A (mm) |
B (mm) |
C (mm) |
T (mm) |
Gewicht (kg) |
|
AK4-6 |
2.36/1.70 |
18 |
75 |
135 |
217 |
1.6 |
|
AK4-8 |
4.25/3.00 |
22 |
90 |
160 |
268 |
3.0 |
|
AK4-10 |
6.70/4.75 |
26 |
100 |
180 |
311 |
4.9 |
|
AK4-13 |
11.20/8.00 |
32 |
110 |
200 |
373 |
8.9 |
|
AK4-16 |
17.00/11.80 |
36 |
140 |
260 |
470 |
14.8 |
|
AK4-18 |
21.20/15.00 |
45 |
180 |
340 |
570 |
26.9 |
|
AK4-22 |
32.00/22.40 |
51 |
190 |
340 |
614 |
43.2 |
