Excel Multi-topschalm UMTS
|
Type |
SWL |
A (mm) |
B (mm) |
Ø C (mm) |
a (mm) |
b (mm) |
Ø (mm) |
Gewicht (kg) |
|
UMTS 18 |
3.50 t |
135 |
75 |
18 |
100 |
60 |
16 |
1.80 |
|
UMTS 22 |
6.50 t |
170 |
90 |
22 |
120 |
70 |
18 |
3.10 |
|
UMTS 28 |
11.00 t |
210 |
115 |
28 |
120 |
70 |
20 |
4.90 |
|
UMTS 36 |
17.50 t |
270 |
150 |
36 |
135 |
75 |
25 |
10.00 |
|
UMTS 38 |
21.20 t |
290 |
160 |
38 |
170 |
95 |
30 |
13.90 |

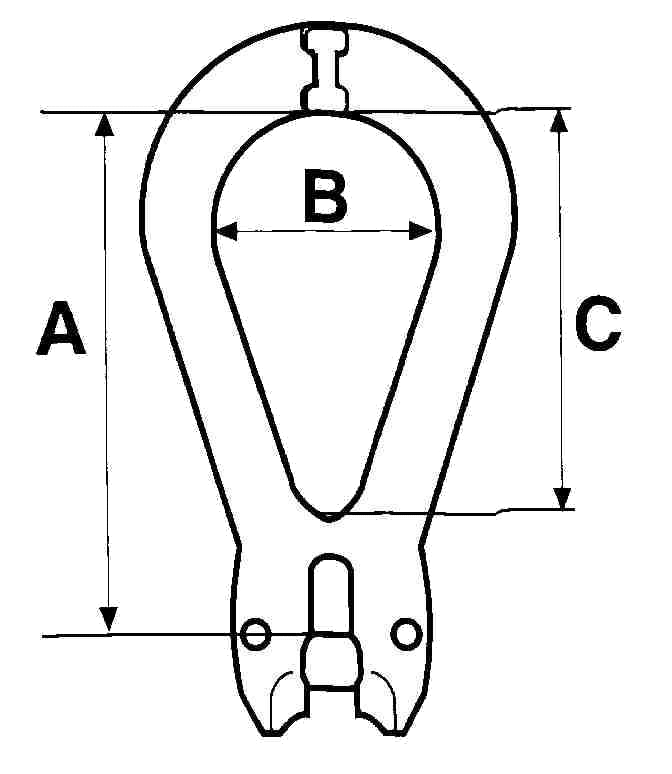

Excel Peerschalm UMP
|
Type |
SWL |
A (mm) |
B (mm) |
C (mm) |
Gewicht (kg) |
|
UMP 5/6 |
1.40 t |
82 |
33 |
64 |
0.13 |
|
UMP 7/8 |
2.50 t |
90 |
41 |
70 |
0.27 |
|
UMP 10 |
4.00 t |
110 |
50 |
87 |
0.61 |
|
UMP 13 |
6.70 t |
147 |
66 |
116 |
1.38 |
|
UMP 16 |
10.00 t |
185 |
84 |
148 |
2.71 |
